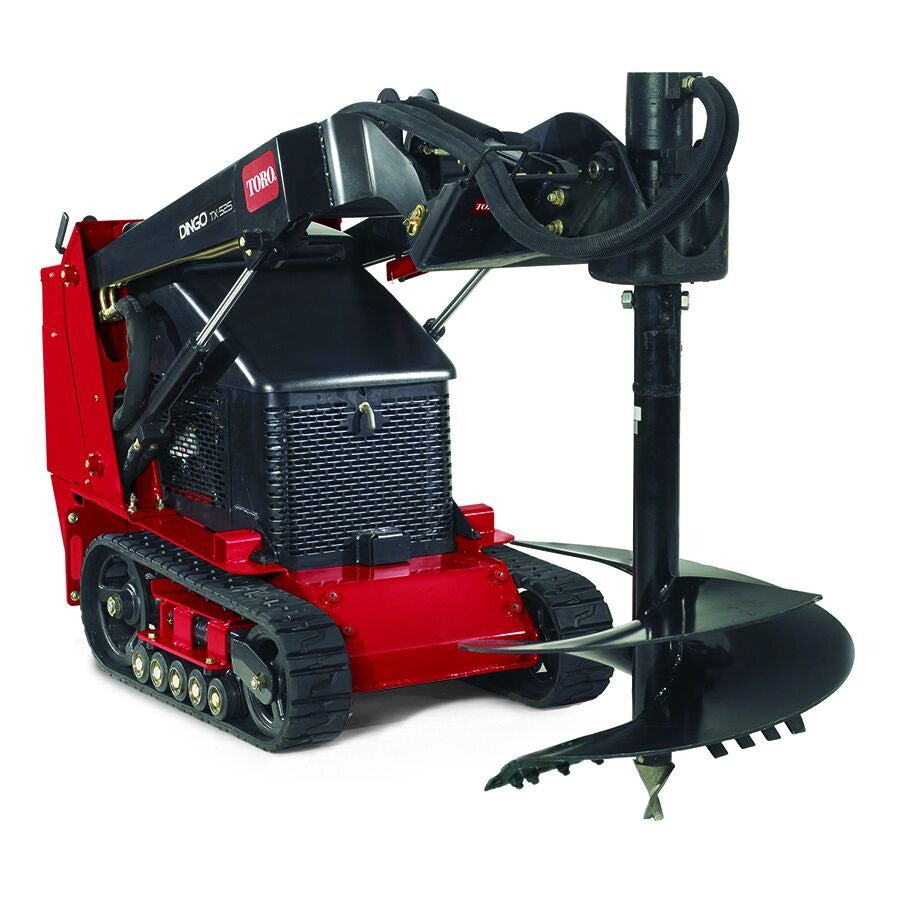

Toro 22814 High Torque Auger Attachment

Toro 22814 High Torque Auger Attachment

Brands: Toro
SKU: Toro 22814 High Torque Auger Attachment-22814
$1,335.00

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Description:

In any drive head, there is a tradeoff between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.

Features:

  • Designed for large auger bits up to 30" (76cm)
  • High Torque (Power) Drive for the most demanding conditions
  • Direct planetary drive

Specifications:

  • Auger Speed: 57 rpm at 11 gpm (41.6 lpm), 95% efficiency
  • Construction: Fabricated, welded steel frame
  • Height: 23 in. / 58.4 cm
  • Length: 16 in. / 40.6 cm
  • Models: Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700
  • Mounting Frame: Dingo® quick-attach mount plate, fabricated, welded base
  • Quick Couplers: Dripless, flush face quick couplers
  • Shaft: 2.6 in. / 6.6 cm
  • Torque: 1515 ft/lbs at 3000 psi, at 11 gpm (461 m-kg at 207 bar, at 72 lpm)
  • Weight: 182 lbs / 82.6 kg
  • Width: 24 in. / 60.9 cm
