Description:

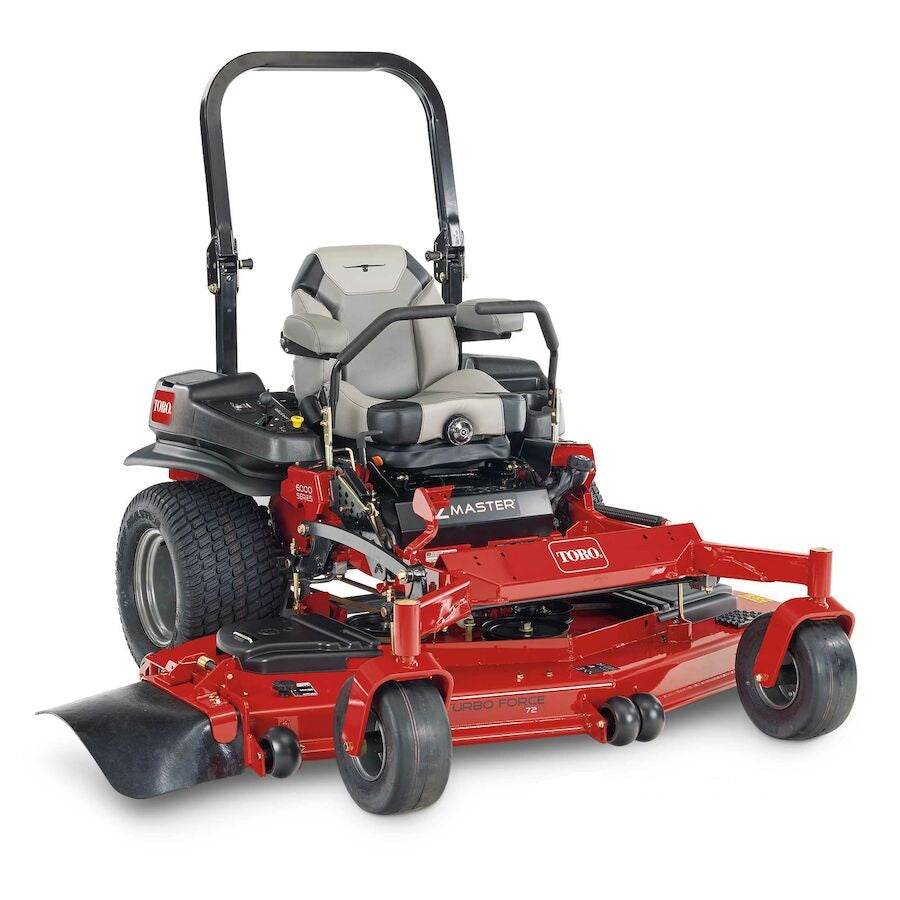

Z Master® 6000 Series EFI models feature Horizon Technology, an onboard intelligence platform that improves fuel efficiency and productivity. This feature allows communication between key systems on the machine to enhance performance in a wide range of mowing conditions. This Z Master® 6000 Series mower has a 38 HP Kohler® Command Pro EFI 999cc w/Horizon™ Technology Engine with 60 in. (152 cm) TURBO FORCE® deck.

Features:

• Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
• Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
• Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

General Information

• Product Type: Zero Turn Mower
• Engine Brand: Kohler
• Engine Model: Command Pro EFI with Horizon™ Technology
• Engine Horsepower: 34 hp*
• Engine Displacement: 999 cc
• Fuel Type: Gasoline
• Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.
• Start Type: Electric
• CARB Compliant: No

Performance

• Forward Ground/Transport Speed: Up to 11.5 mph / 18.5 kph
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Number of Blades: 3
• Blade Material: 0.204 in. (0.5 cm) Heat-Treated Steel

Cutting Deck

• Deck Size: 60 in. / 152 cm
• Deck Design: 80-Grade 7-Gauge TURBO FORCE® with Bull-Nose Bumper
• Deck Material: 7-Gauge Steel
• Height of Cut Range: 1.0 - 5.5 in. / 2.5 - 14.0 cm
• Discharge Chute: Rubber
• Adjustable Discharge Baffle: Standard, Tools-Free

Drive System

• Type: Unitized Pumps (16cc) and Wheel Motors (17.1 ci)
• Hydraulic Fluid: Premium Synthetic

Chassis and Tires

• Drive Tires: 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm), Flat-Free Semi-Pneumatic
• Carrier Frame: 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
• Front Bumper: Reinforced Bull-Nose

Comfort & Controls

• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests and Bullhorn Accent
• Comfort Platform: Deluxe Suspension with 3-D Isolation Mounts
• Armrests: Standard
• Steering Controls: 1-5/8 in. (4.1 cm) Diameter Grips, Adjustable, Dampened
• Steering Dampeners: Standard Dampers
• Hour Meter: Horizon™ Technology

Spindle System

• Spindle Bearings: Maintenance-Free
• Spindle Housing: 9 in. / 22.9 cm Diameter Cast Aluminum

Additional Features

• Clutch: Electromagnetic
• Air Filter: Heavy-Duty Canister Air Cleaner
• Roll-Over Protection System (ROPS): Folding, Standard

Dimensions & Weight

• Box Dimensions: 91.5 in. x 70.5 in. x 52.5 in. / 232.4 cm x 179.1 cm x 133.4 cm
• Weight: 1,200 lbs / 544 kg
