Description:

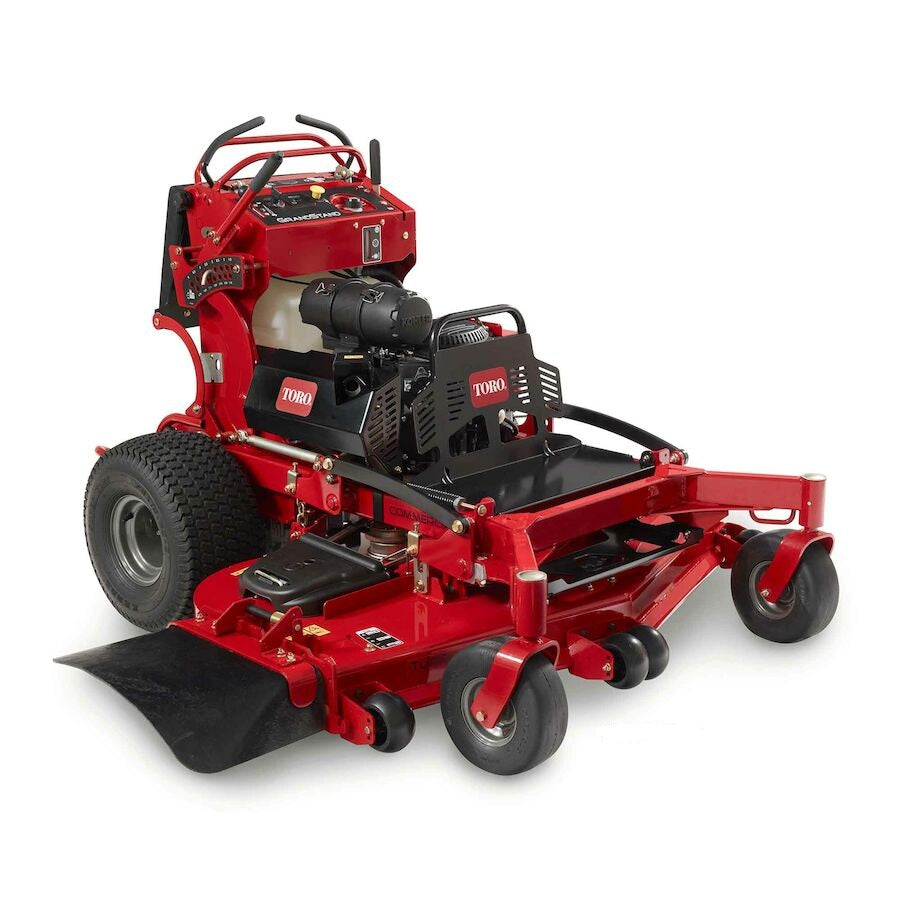

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 23 hp Kohler EFI engine.

Features:

• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
• Foldable operator platform instantly converts the machine to a walk-behind.
• Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
• No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
• Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
• 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
• A wide stance and optimal balance enhance hillside stability and control.
• The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Stand-On Mower
• Product Use: Commercial
• Weight: 877 lbs / 397.8 kg
• Start Type: Electric
• Hour Meter: Standard

Engine

• Engine Brand: Kohler
• Engine Model: Command EFI
• Engine Displacement: 747 cc
• Engine Horsepower: 23.0 hp (17.1 kW)
• Fuel Type: Gasoline
• Fuel Capacity: 10.5 gal / 39.7 L / 42 Qt
• CARB Compliant: CARB Compliant

Drive System

• Drive Type: Unitized Pumps (10cc/rev) with Wheel Motors (10 cu in)
• Forward Ground Speed / Transport Speed: Up to 10.0 mph / 16.0 kph
• Clutch: Electromagnetic
• Hydraulic Fluid: Premium synthetic

Cutting Deck

• Deck Size: 48 in / 122 cm
• Deck Design: 80-grade 7-gauge TURBO FORCE® with Bull-Nose Bumper
• Deck Material: 7-Gauge Steel
• Height of Cut: 1.5 - 5.0 in / 3.8 - 12.7 cm
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Blades: 0.204 in (0.5 cm) heat-treated steel
• Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
• Spindle Bearings: Maintenance-free
• Discharge Chute: Rubber
• Adjustable Discharge Baffle: Standard, Tools-Free

Frame and Tires

• Carrier Frame: 3 in x 1.5 in x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
• Caster Tires: 11 in x 4 in - 5 in (27.9 cm x 10.2 cm - 12.7 cm), Flat-Free Semi-Pneumatic
• Drive Tires: 20 in x 10.5 in - 8 in (50.8 cm x 26.7 cm - 20.3 cm)
• Front Bumper: Reinforced Bull-Nose
• Anti-Scalp Wheels: Optional

Operator Features

• Comfort Platform: Foldable Operator Platform with Suspension
• Controls: Twin Lever
• Steering Controls: Twin Lever

Air & Filtration

• Air Filter: Heavy-Duty Canister Air Cleaner

Dimensions

• Box Dimensions: 82 in x 63 in x 52 in / 208.3 cm x 160.0 cm x 132.1 cm
