Description:

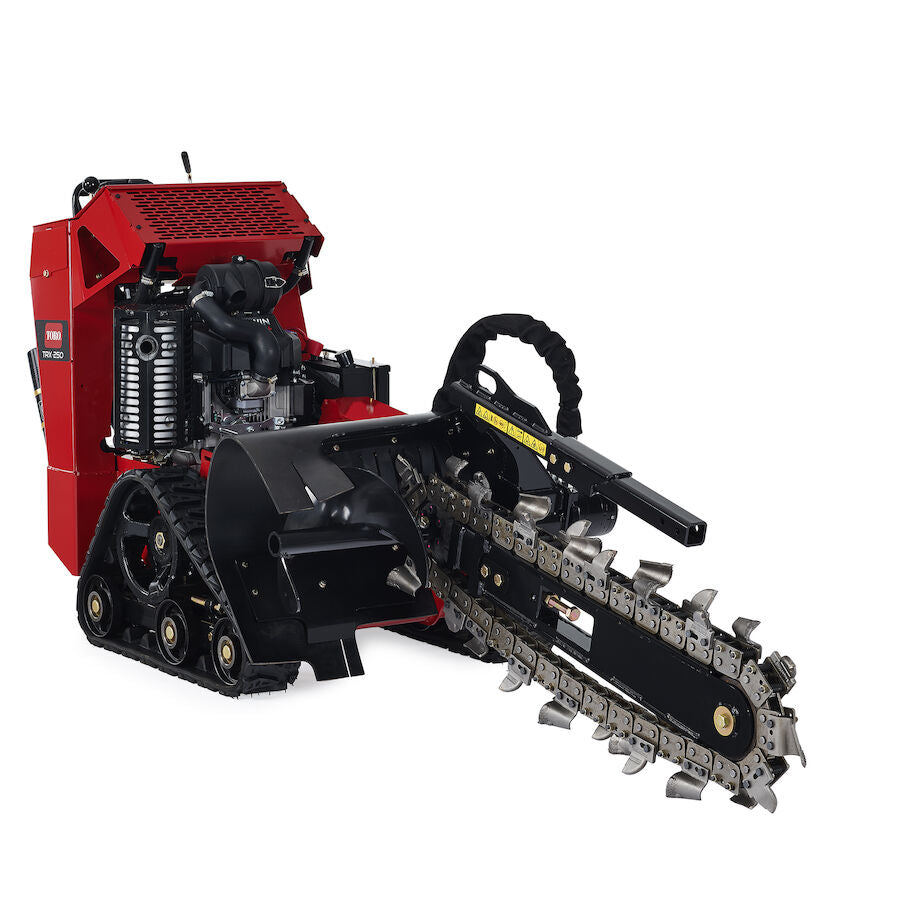

Toro TRX walk-behind trenchers are now more efficient and powerful than ever. We’ve improved our lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.

Features:

• Low center of gravity and large footprint, offer stability and increased maneuverability
• Exclusive Intelli-Trench® Technology
• Fewer parts than previous models simplifies maintenance

Specifications:

• Boom Depths: 24 in., 36 in., & 48 in. / 60.9 cm, 91.4 cm & 121.9 cm
• Boom Widths: 4 in. & 6 in. / 10.1 cm & 15.2 cm
• Cooling System: Air Cooled
• Engine Horsepower: 24.5 hp (18.3 kW) @ 3,600 rpm
• Engine Make: Toro
• Engine Model: V-Twin
• Fuel Tank: 4 gal. / 15.1 L
• Fuel Type: Gasoline
• Ground Pressure (with 24" Boom): 4.1 PSI
• Ground Pressure (with 36" Boom): 4.4 PSI
• Ground Pressure (with 48" Boom): 4.5 PSI
• Head shaft Speed: 210 rpm with 498 ft/lbs of torque
• Hour Meter: Standard
• Hydraulic Flow (Traction - Transport): 16.2 GPM / 61.3 LPM
• Hydraulic Flow (Traction - Trenching): 3.0 GPM / 11.4 LPM
• Hydraulic Flow (Trencher): 13.2 GPM / 50 LPM
• Hydraulic Oil Cooler: Standard
• Hydraulic Pressure: 2,670 PSI / 18,409 kPa
• Oil Capacity: 2.5 qt / 2.4 L
• Overall Height (with 24" Boom Up & Chain): 46 in. / 116.8 cm
• Overall Length (with 24" Boom Up & Chain): 82.5 in. / 209.5 cm
• Overall Width (with 24" Boom Up & Chain): 33.8 in. / 85.8 cm
• Reservoir Capacity: 6.3 gal. / 23.8 L
• Start Method: Electric
• Tracks Drive: Sprocket-drive, 3 Road Wheels Per Side
• Tracks Material: Endless Nylon Reinforced Rubber
• Tracks Traction: Two-section Hydraulic Pump with Two Hydraulic Motors (one for each track)
• Tracks Width: 5.9 in. / 14.9 cm
• Transport Speed - Forward: Up to 2.4 mph / 3.9 km/h
• Transport Speed - Reverse: Up to 1.2 mph / 2.4 km/h
• Weight: 1,104 lbs / 500 kg
• Wheelbase: 23 in. / 58.4 cm
