Description:

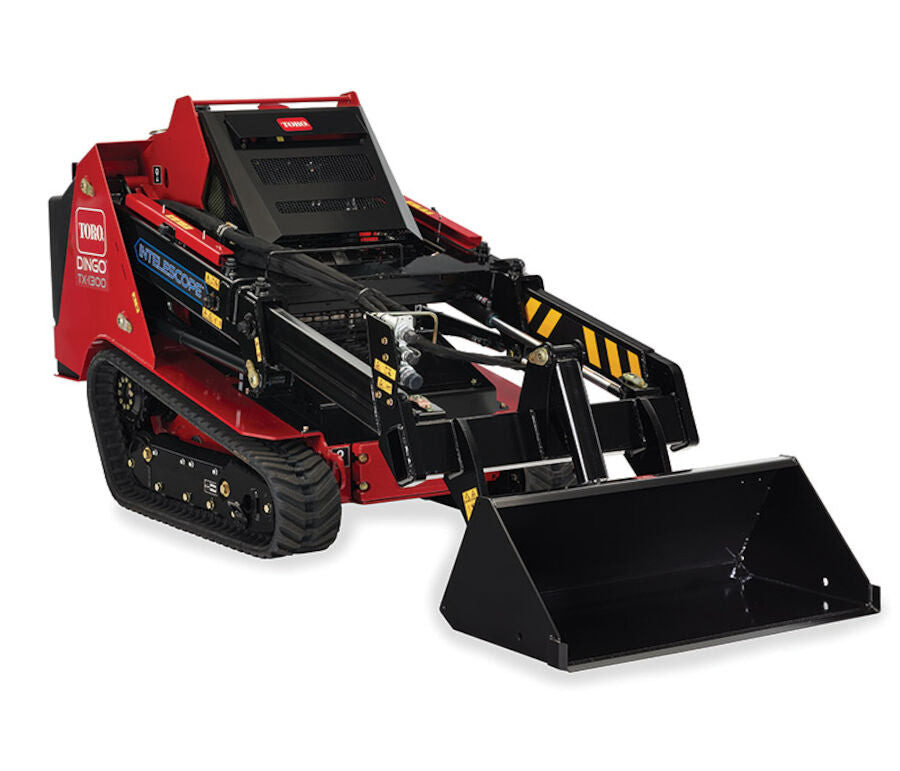

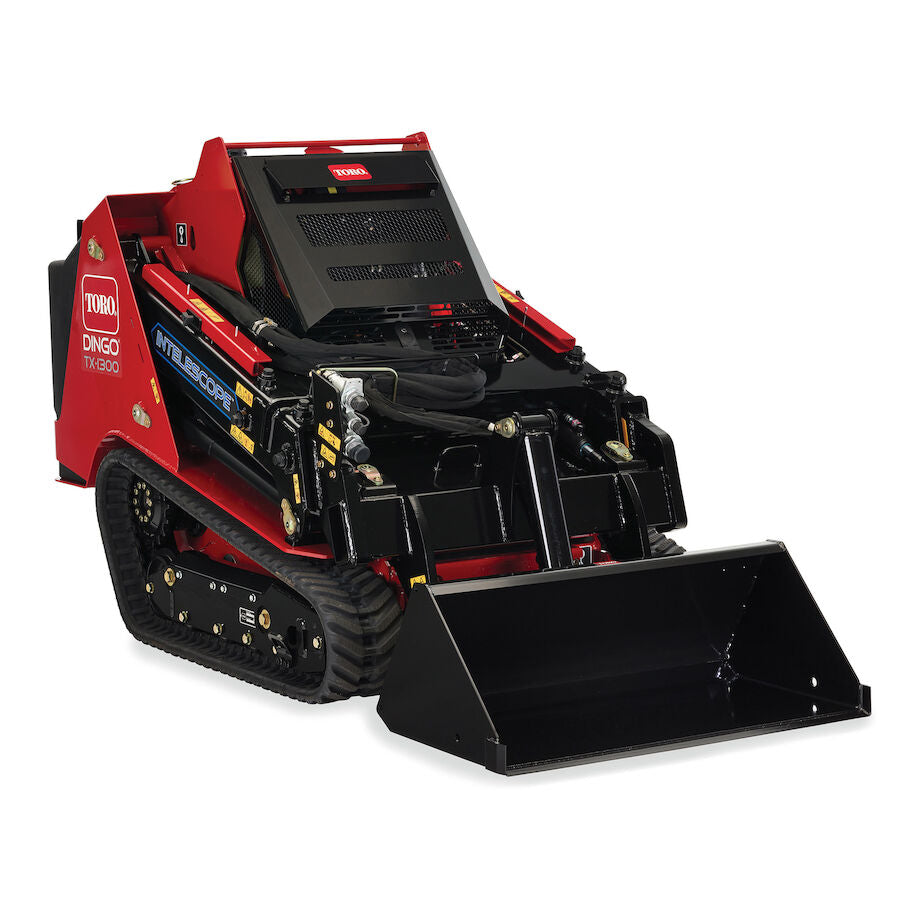

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26" of reach, and the telescoped hinge-pin height of 109" means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.
Features:

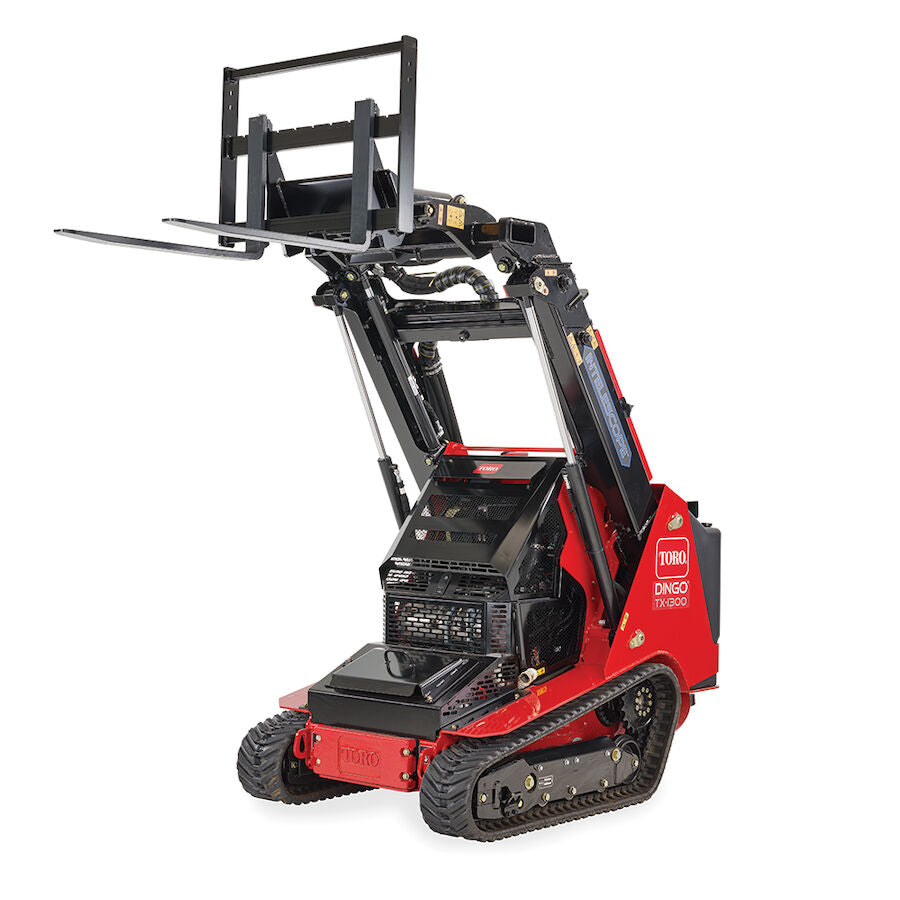

- Intelescope Loader Arm
- Quick Coupler System

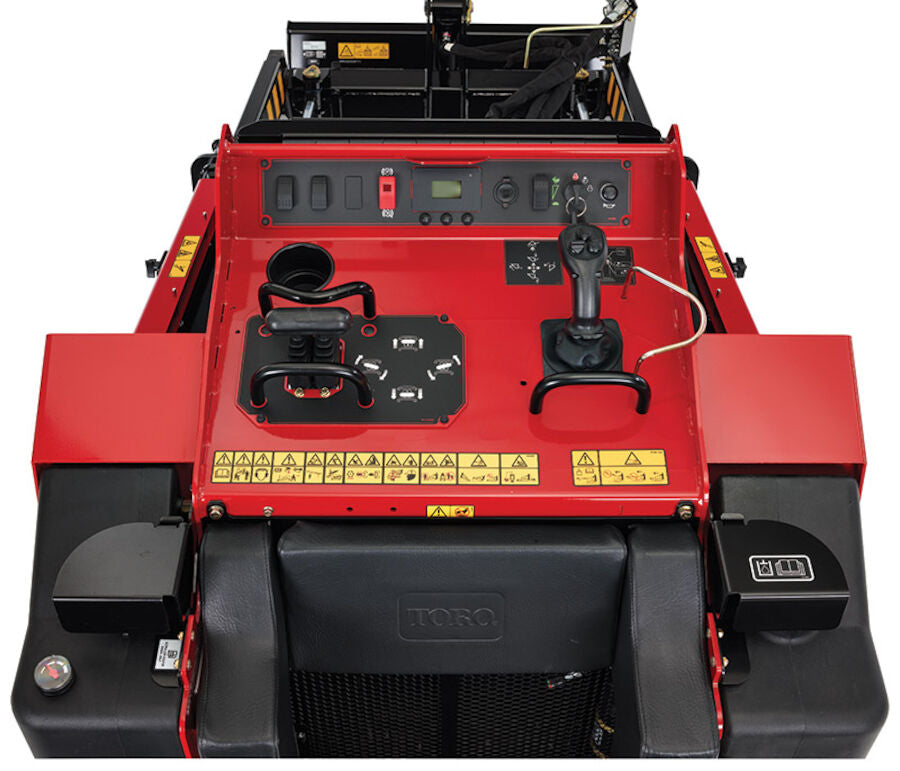

- Patented traction control
Specifications:
- Engine
- Make / Model: Yanmar 3TNV88C
- Horsepower: 37 hp (27 kW)
- Fuel Type: Diesel
- Fuel Tank Capacity: 11 gal. / 41.6 L
- Cooling System: Combo Downflow Radiator and Oil Cooler, Independent Fuel
- Air Filter: Remote dual element
- Oil Capacity: 5 qt / 4.7 L
- Hydraulics
- Auxiliary Flow: 14.3 GPM
- Traction Flow: 13.4 GPM
- Hydraulic Pressure: 3,200 psi
- Reservoir Capacity: 9.2 gal. / 34.8 L
- Performance
- Ground Speed (Forward/Reverse): Up to 4.7 mph / 7.6 km/h
- Ground Pressure: 5.5 psi
- Traction: Dual Hydrostatic Pump
- Loader Arms: Radial
- Capacities
- Rated Operating Capacity (Retracted): 1,300 lbs / 589.6 kg
- Rated Operating Capacity (Extended): 618 lbs / 280.3 kg
- Tip Capacity: 3,714 lbs / 1,685 kg
- Dimensions
- Height (overall, with bucket): 56.5 in. / 143.5 cm
- Length (w/o bucket): 84.9 in. / 215.6 cm
- Length (with bucket): 103.1 in. / 261.8 cm
- Width (with or without bucket): 46 in. / 116.8 cm
- Wheelbase: 39 in. / 99.0 cm
- Ground Clearance: 5.9 in. / 14.9 cm
- Dump Height (Extended): 90.7 in. / 230.3 cm
- Dump Height (Retracted): 70.9 in. / 180.0 cm
- Hinge Pin Height (Extended): 109.2 in. / 277.3 cm
- Hinge Pin Height (Retracted): 89.4 in. / 227.0 cm
- Reach (Fully Raised): 26.7 in. / 67.8 cm
- Max Operating Height: 133 in. / 337.8 cm
- Tracks
- Type: MERT track with "TF" style tread
- Track Width: 9.1 in. / 23.1 cm
- Track Length: 126.6 in. / 321.5 cm
- Weight
- Operating Weight: 3,858 lbs / 1,750 kg
Width | Weight | Height | Length |
---|---|---|---|
0 Inch | 3858 Pounds | 0 Inch | 0 Inch |
